HARD CHROMIUM PLATED BAR

MAIN MATERIALS


Standard Production:
Ck 45
By Request:
20 Mn V6 , Cf 53, 42Cr Mo 4, 100Cr6
Also Available by Request:
2AISI 420 , AISI 431, AISI 305 ,AISI 316 (Stainless steel)
Hard Chromium Plated Bars diameter range 6 mm to 350 mm,
Diameter Tolerence:
ISO f7 ovality ISOf7/3
Standard Production Range:
6 mm – 127 mm
Production range by request:
130mm to 350 mm

METRIC SIZES

"Standard production includes imperial and metrics sizes."


METRIC Sizes as Follow:

6mm 8mm 10mm
12mm 14mm 15mm
16mm 18mm 19mm
20mm 22mm 24mm
25mm 28mm 30mm
32mm 35mm 36mm
18mm 40mm 18mm
45mm 48mm 50mm
55mm 56mm 60mm
63mm 65mm 70mm
75mm 80mm 85mm
90mm 95mm 100mm
105mm 110mm 115mm
120mm 125mm 130mm
140mm 150mm 160mm
180mm 200mm


IMPERIAL Sizes as Follow:

¼ (6,35 mm) 3/8 (9,525mm)
½ (12,7mm) 5/8 (15,875mm)
¾ (19,05mm) 1 inç (25,4mm)
1 ¼ (31,75mm) 1 3/8 (34,925mm)
1 ½ (38,1mm) 1 5/8 (41,275mm)
1 ¾ ( 44,45 mm) 2 inç (50,80 mm)
2 ¼ ( 57,15mm) 2 ½ ( 63,5mm)
2 ¾ (69,85mm) 3 inç (76,2mm)
3 ¼ ( 82,5 mm) 3 ½ ( 88,9mm)
3 ¾ (95,25mm) 4 inç ( 101.6 mm)
4 ½ ( 114,3mm) 5 inç ( 127 mm)
LENGHT OF BARS
HARD CHROMIUM PLATING
HARD CHROMED RODS...

Standard Length : 5,5 m – 6,5 m Max Length By Request : 17 m Straightness : 0,05/1000

Hard Chromium Wall Thickness : Min 20 Micron
Double Chromium Plating : Crack Free Layer 10 mic.
Plus 20 mic micro Kracked 1000 Vikers Layer.
Chormium Thickness Hardness : 850 Vikers- 1150 Vikers
Raughness : Ra 0,15 mic – 0,25 mic

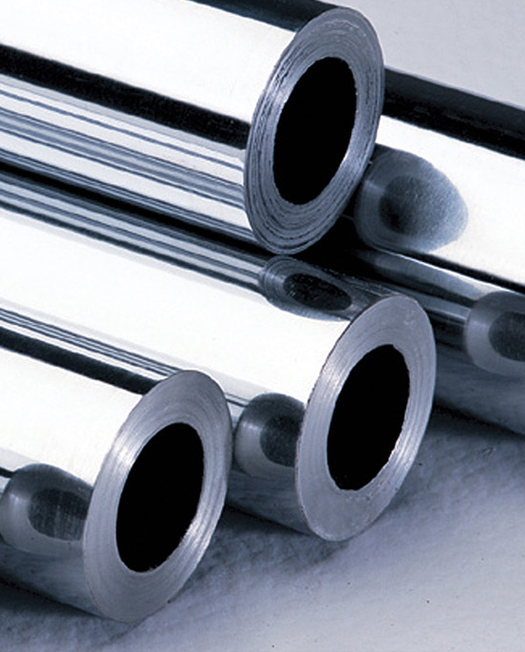

Hard Chromed Rods Out Side Hard Chromium Plated Tubes:
We have two offers in this field.

• Cold drawn pipes with smooth inner diameter and hard chromium plated outside diameter.
• Peeled pipes with hard chrome plated outside surface and raw material inner surface.


INDUCTION HARDENED BARS:
850 Vikers- 1150 Vikers
We have two types products;
• Induction hardened bars for hydraulic cylinders:Main material is CK 45 .

Diameter ranges from 10 mm to 200 mm.
Standard length is 6m.
By request bars minimum of 2 meters and maximum of 17 meters can be induction hardened.

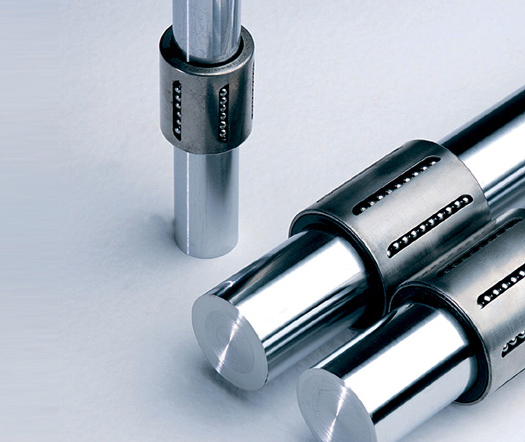

• Induction hardened bars for ball bearing .
Main material is Cf53
Dimater ranges from 6mm to 120mm.
Longer bars and larger diameters are available by request.
